TTM 313 – Profile depth gauge

TTM 313 – Laser detector for tire tread depth measurement

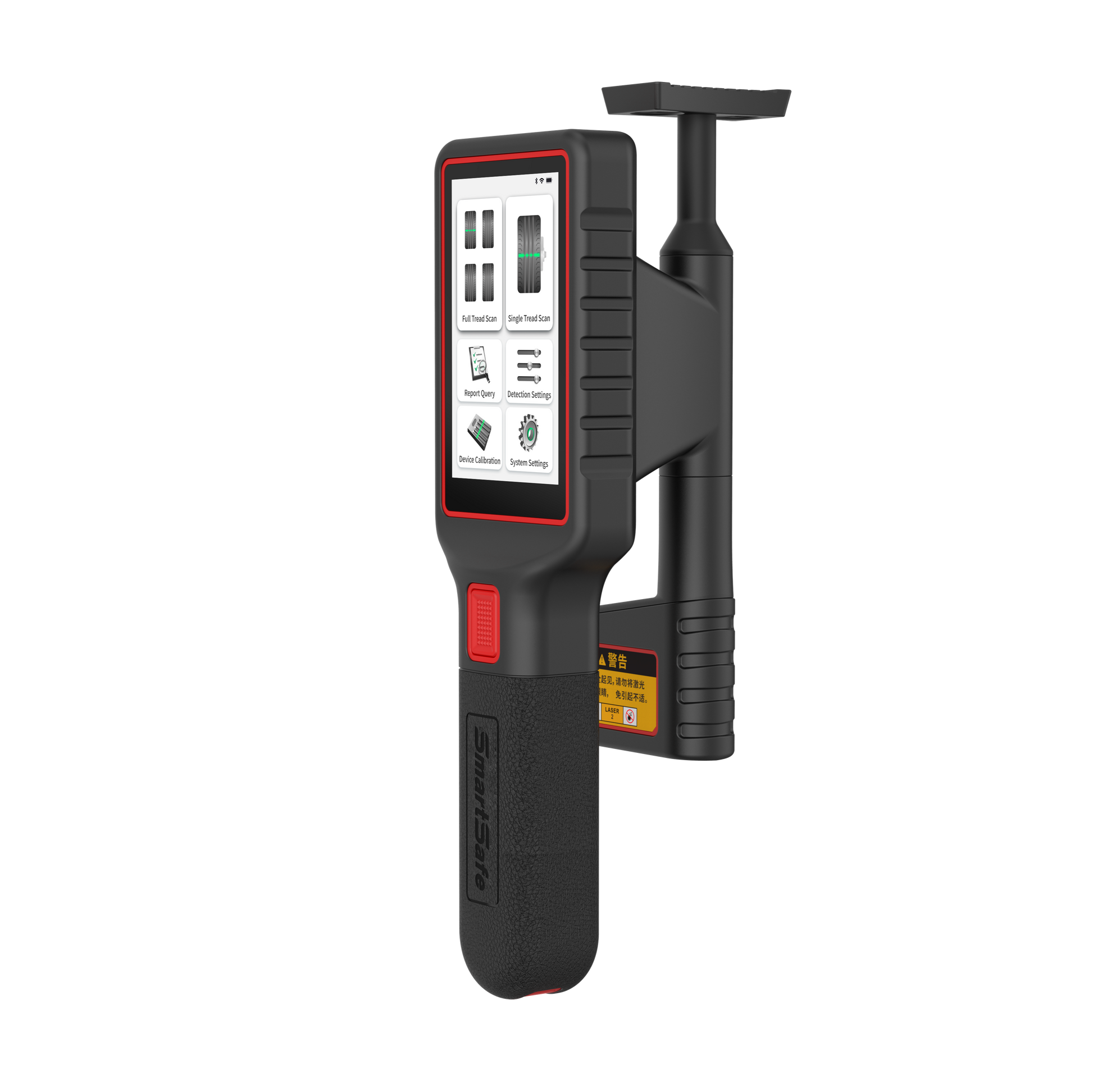

The TTM 313 is a high-precision handheld laser detector for tire tread depth measurement, offering measurement accuracy of up to 0.1 mm . Thanks to its innovative design, the measurement is not limited by the chassis height, allowing for convenient and easy handling, even on vehicles with special conditions. The TTM 313 uses a line laser to scan the entire tread and offers two measurement modes: full tread measurement and individual groove measurement . This makes it a versatile tool for tire inspection.

Main features:

• Precision : With a measuring accuracy of up to 0.1 mm, you can measure the tread depth with the highest accuracy.
• Versatile measuring methods : Supports full-surface tread depth measurement as well as the measurement of individual grooves , enabling detailed analysis of the tire tread.
• Real-time display : The measurement results are displayed in real time and can be evaluated immediately.
• Fast data acquisition : The device reads the profile data of a tire in just 3 seconds , ensuring fast and efficient measurement.

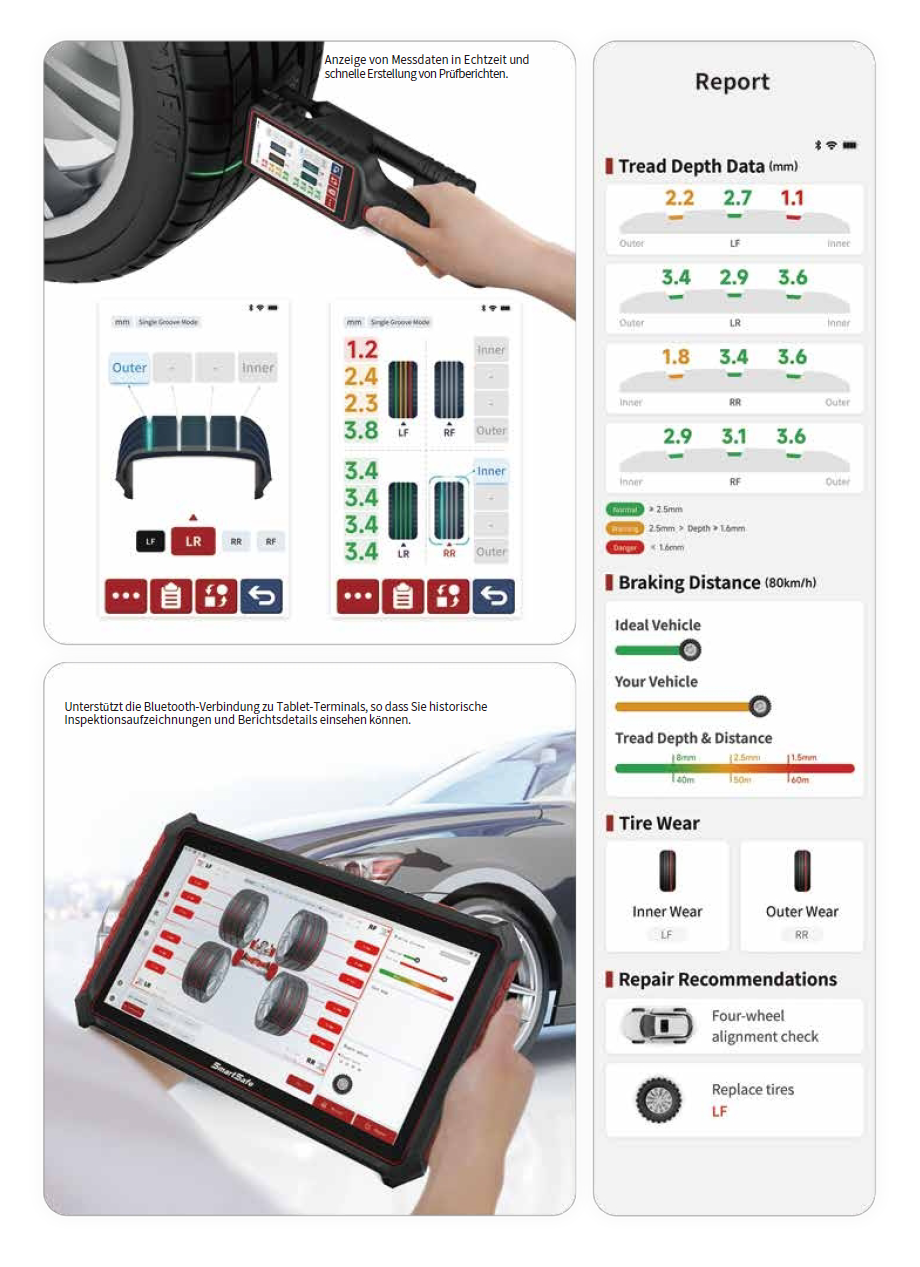

• Reporting : You can generate detailed inspection reports containing tread pattern data, wear analysis, estimated braking distances, and maintenance recommendations. These reports can be easily shared via QR code after Wi-Fi connection.

Features:

1. Tread depth measurement : The device supports the measurement of the tread depth across the entire tread of a single tire as well as the measurement of the depth of individual grooves or small tire profiles.
2. Inspection reports : The TTM 313 creates professional inspection reports that include profile data, wear analyses, and maintenance recommendations. Reports can be easily shared via QR code .
3. Adjustable detection parameters : You can customize the number of tires (up to 6), the tread depth standard and the unit of measurement.
4. Calibration : The device can be used with a calibration block to improve the measurement accuracy if necessary.
5. Integration with diagnostic devices : The TTM 313 is compatible with various diagnostic devices such as ST13/P13/P03 and enables the synchronous display and storage of the measurement results.
6. Advanced system settings : Supports Wi-Fi connection , language switching, screen brightness settings, auto sleep, software updates and many more features.

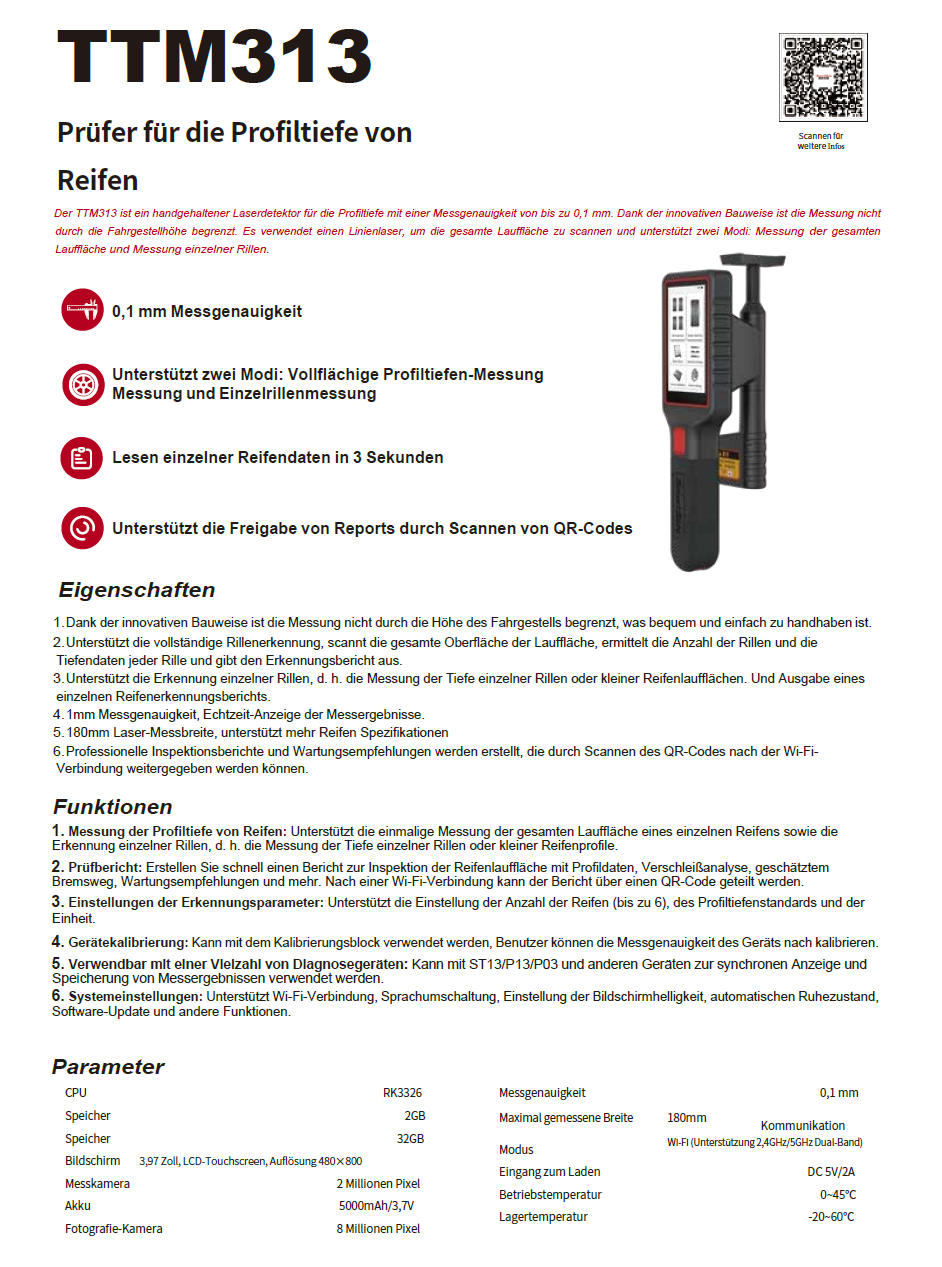

Technical parameters:

• Measuring accuracy : 0.1 mm
• Maximum measured width : 180 mm
• Display : 3.97 inch LCD touchscreen, resolution 480×800
• Measuring camera : 2 million pixels
• Photography camera : 8 million pixels
• Memory : 32 GB (expandable)
• Battery : 5000mAh/3.7V
• Operating temperature : 0 ~ 45°C
• Storage temperature : -20 ~ 60°C
• Communication mode : Wi-Fi (2.4GHz/5GHz dual band)
• Charging input : DC 5V/2A

Advantages:

• Innovative design : The measurement is not limited by the chassis height of the vehicle, which makes the application versatile.
• Fast and precise measurement : With a measurement accuracy of 0.1 mm and the ability to view the measurement in real time, the TTM 313 enables precise analysis.
• Reporting and sharing : Test reports can be quickly created and shared with others by scanning a QR code, facilitating documentation and communication.
• Compatibility : The TTM 313 can be easily connected to other diagnostic devices so that you can store and evaluate all measurement results in one place.

The TTM 313 is the ideal tool for workshops and tire inspection stations seeking a precise and efficient solution for tread depth measurement. With its high measurement accuracy, fast data acquisition, and user-friendly features, it's perfectly suited for professional applications.
