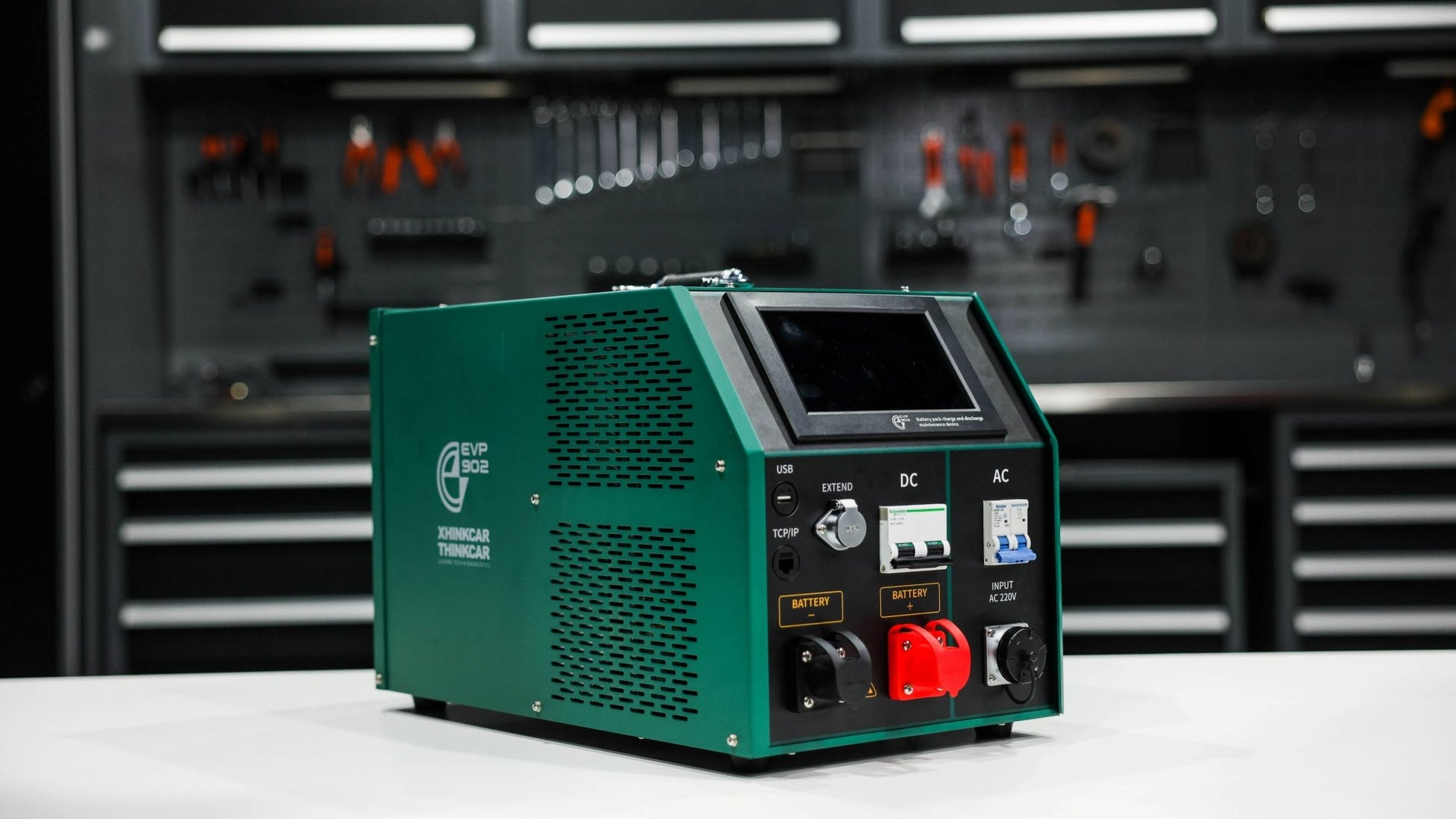

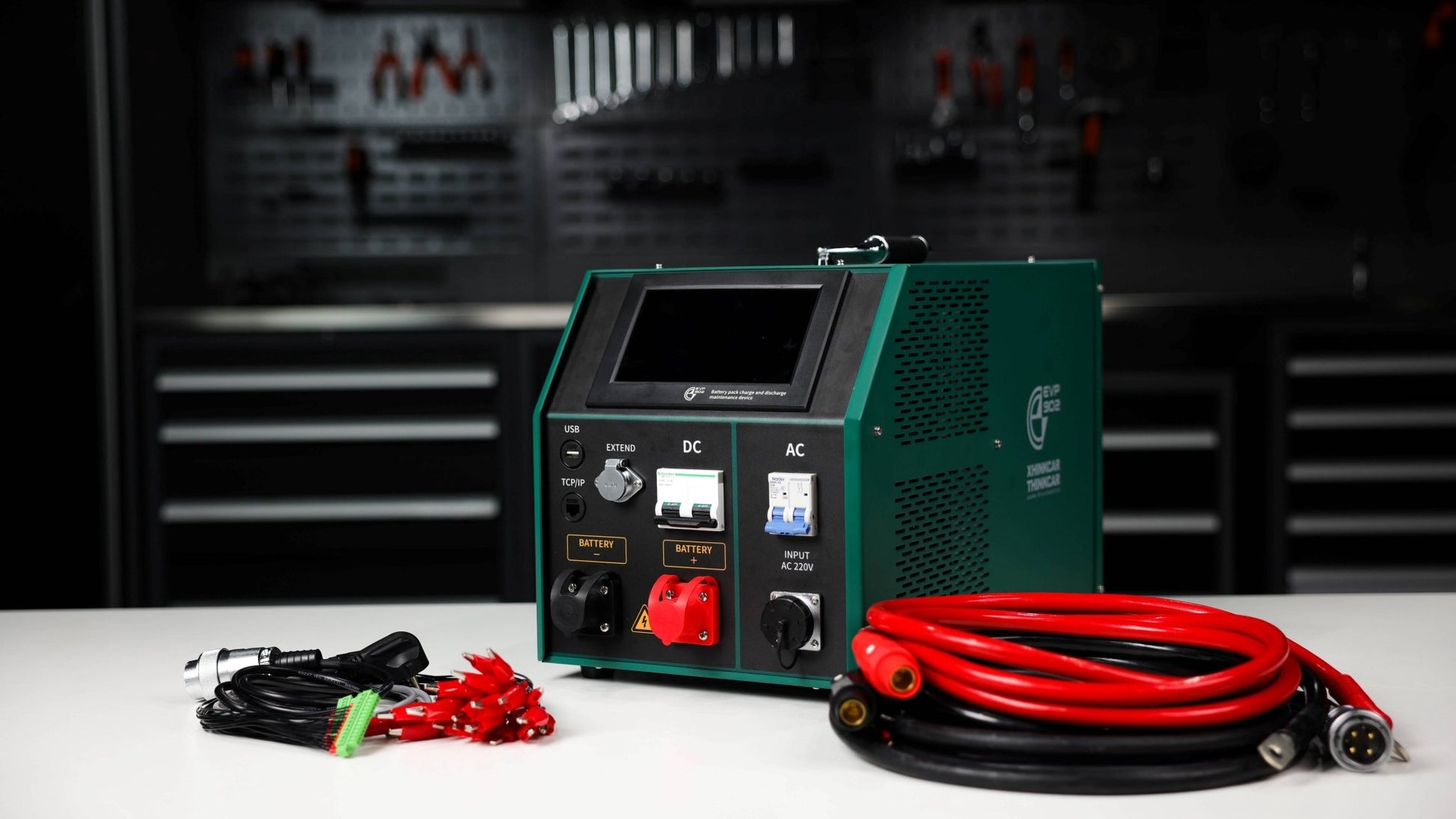

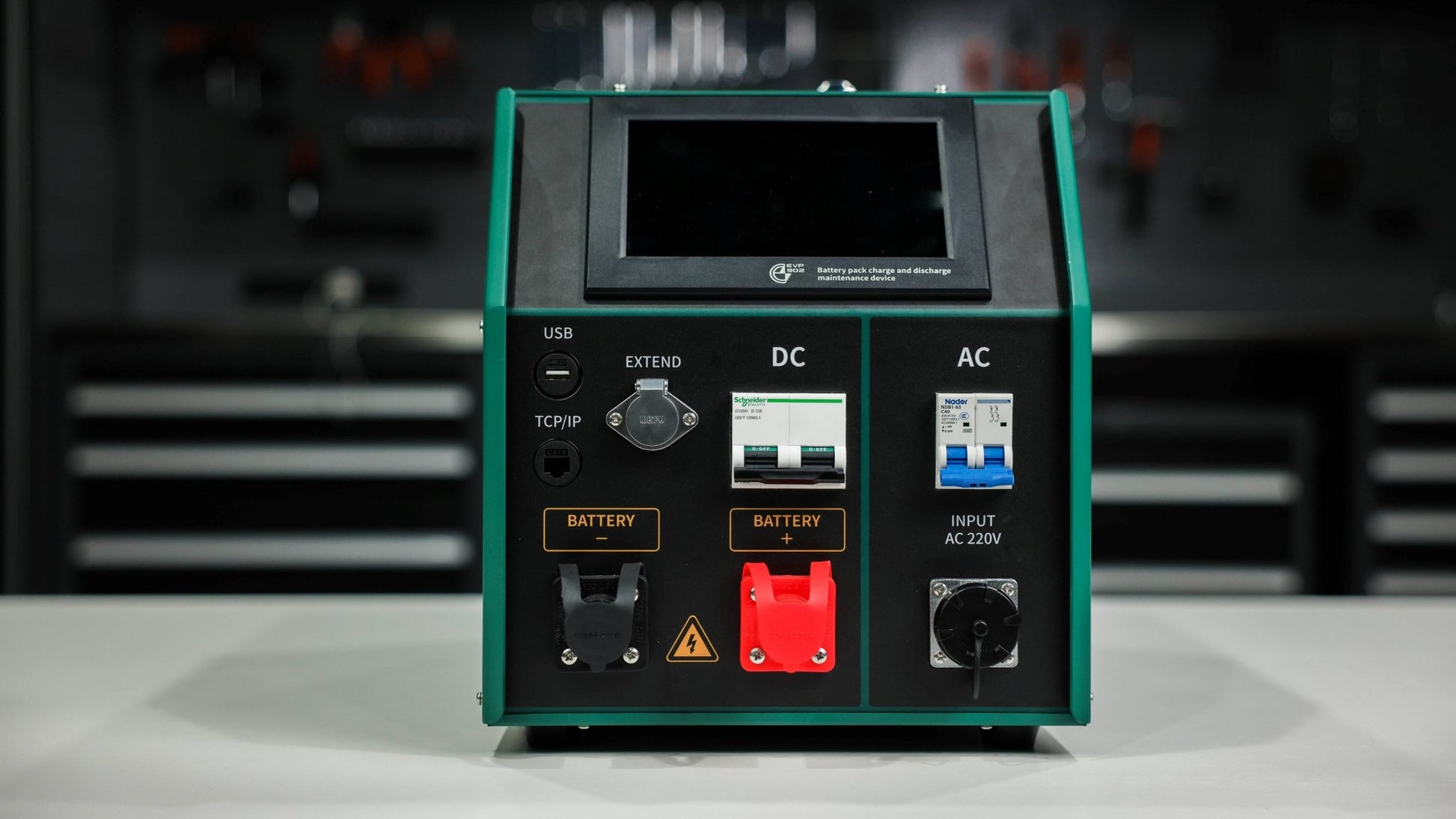

THINKCAR CE EVP 902 Module Charger

The THINKCAR CE EVP 902 module charger is an efficient solution for charging and discharging high-voltage (HV) modules, used after battery repair or for long-term storage. This powerful device ensures safe handling and keeps your HV modules in optimal condition.

With a fast charge and discharge process, the EVP 902 enables precise control of the entire process. Whether optimizing performance or preparing the battery for storage, the charger offers comprehensive control over the charge and discharge process with constant voltage and current regulation.

Its triple protection system ensures maximum safety during handling and use. It also supports data communication via CAN and RS485 , with convenient data retrieval and in-memory data preview , allowing for detailed analysis of charging and discharging processes.

Specifications:

• Working power supply: AC 110-220V (40-60HZ)
• Discharge current: 150A (Max), power 7.2kW (Max)
• Charging current: 100A (Max), power 4.4kW (Max)
• Charging voltage: DC 2-260V
• Discharge voltage: DC 2-260V
• Data communication: CAN, RS485
• Screen size: 7 inches
• Storage: 16GB
• Weight: 28kg
• Size: 512 × 295 × 339mm

This module charger is specifically designed to safely charge and discharge high-voltage batteries, making it ideal for both workshops and professional electric vehicle repairers. It provides the necessary power and safety to ensure the long-term, flawless functioning of the HV modules.
