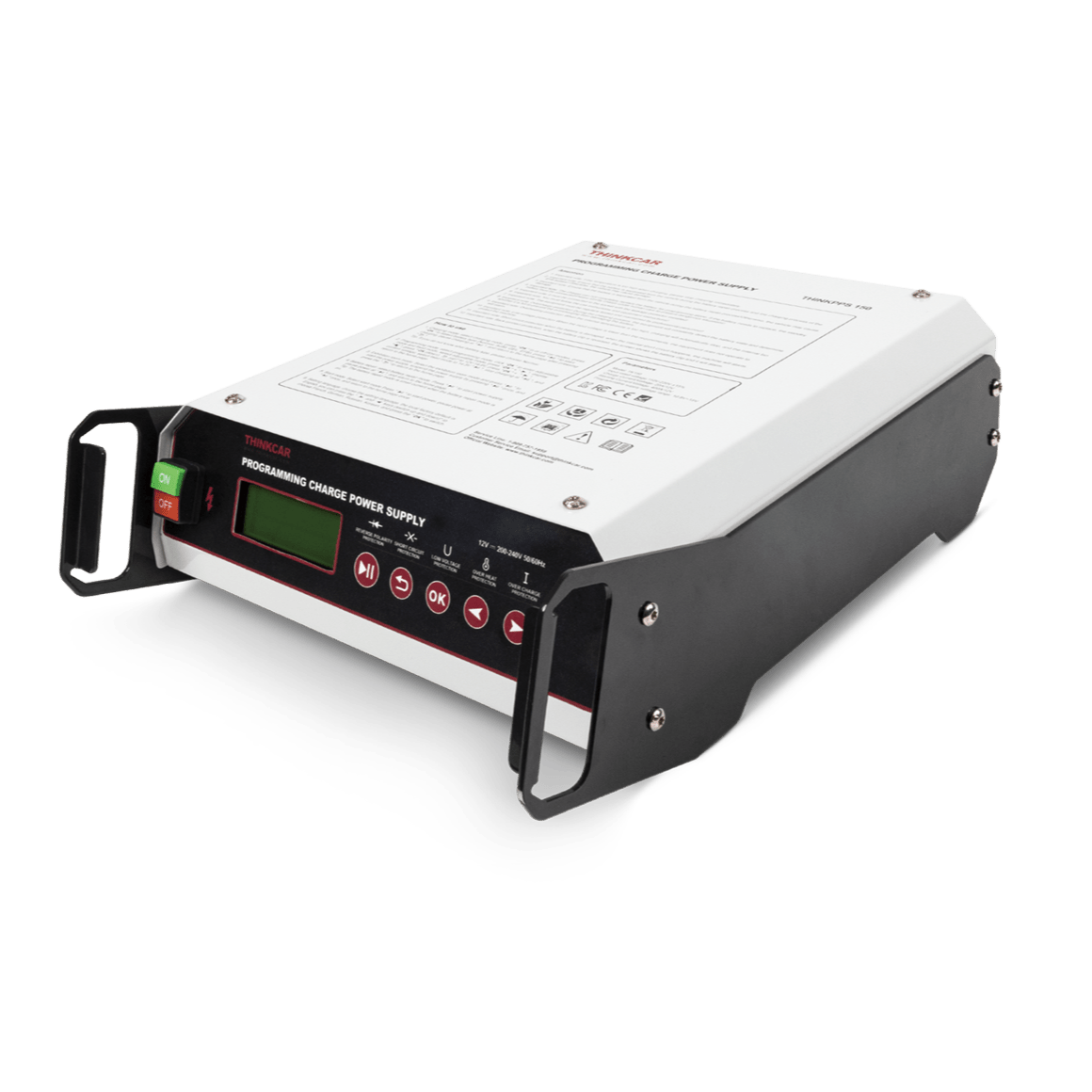

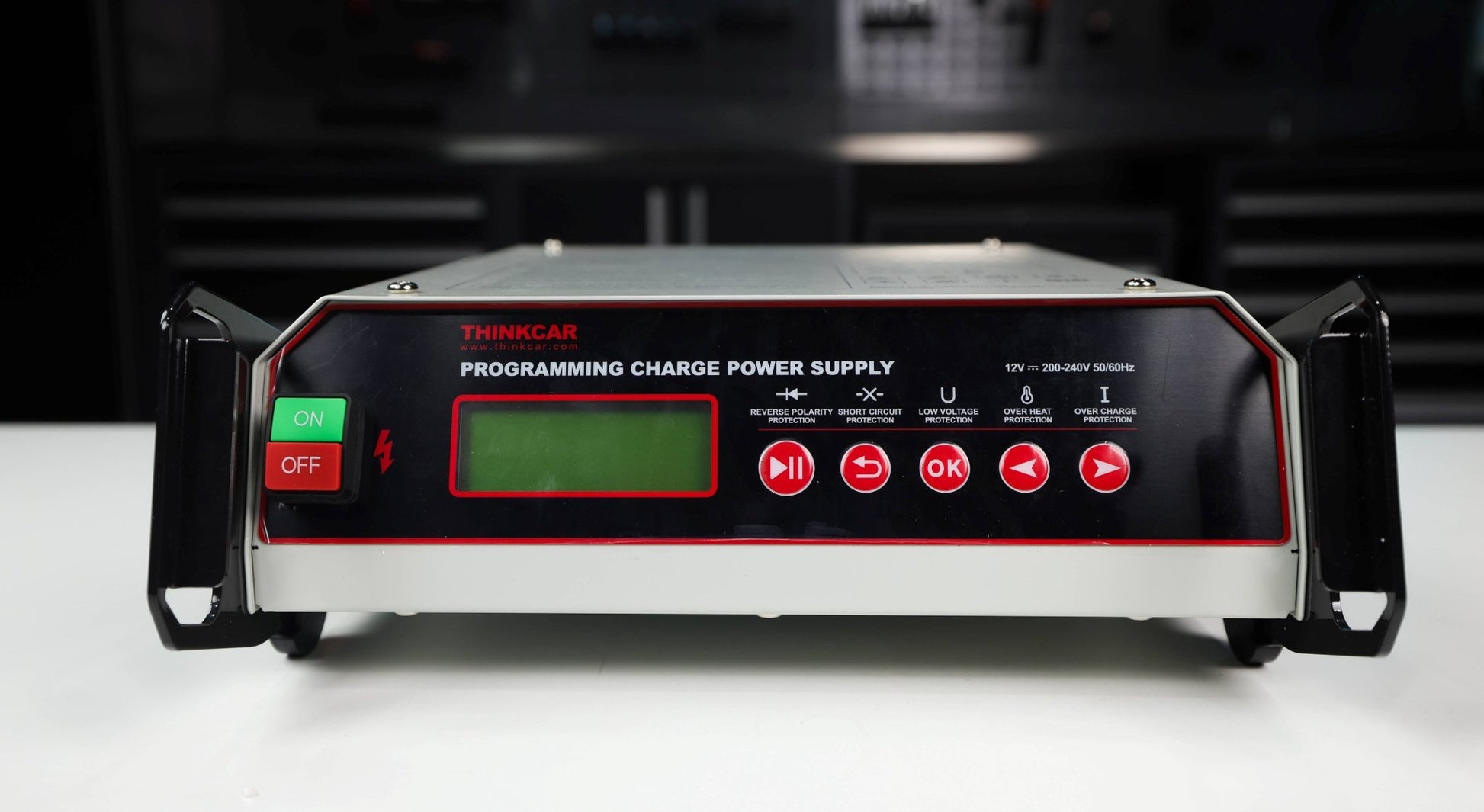

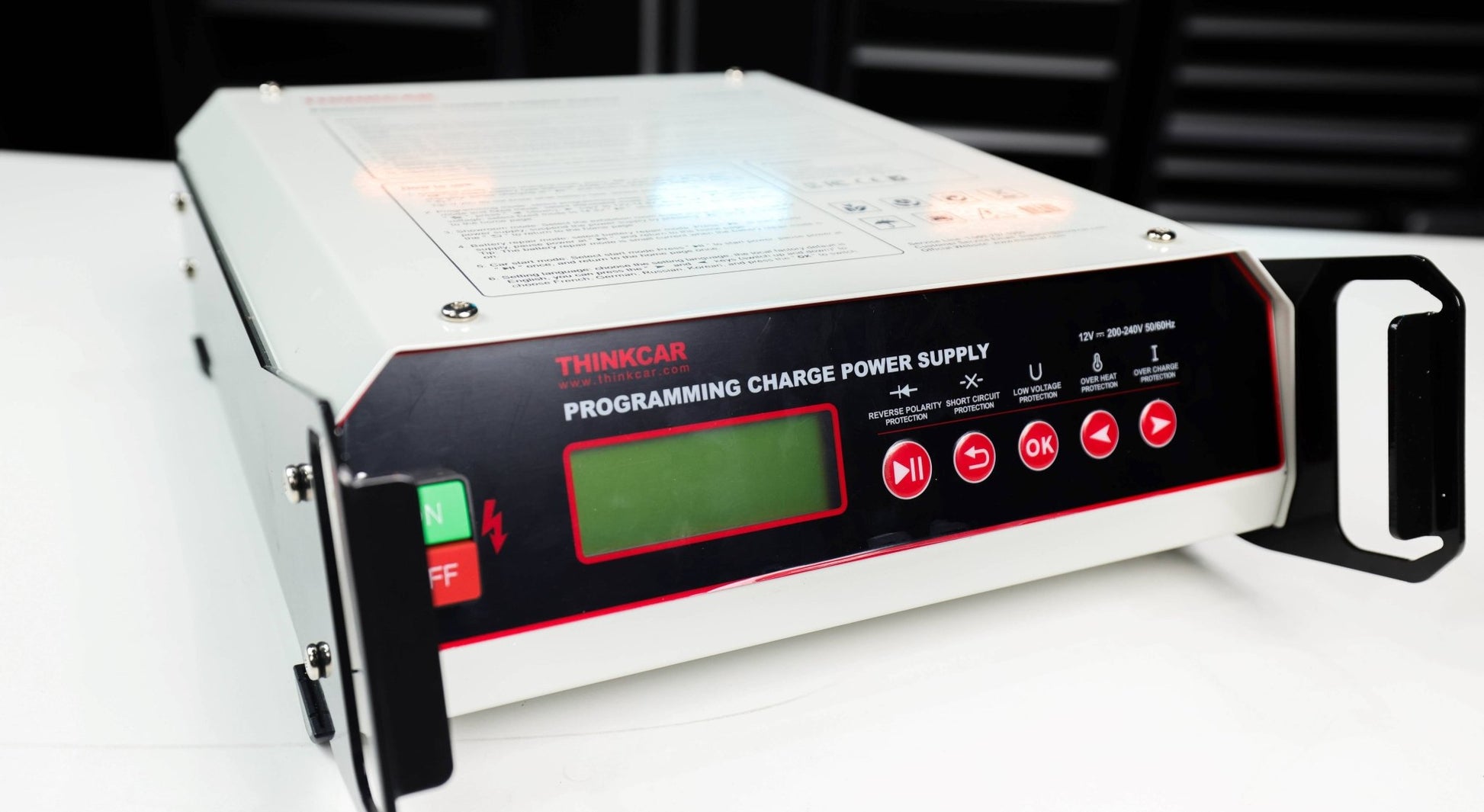

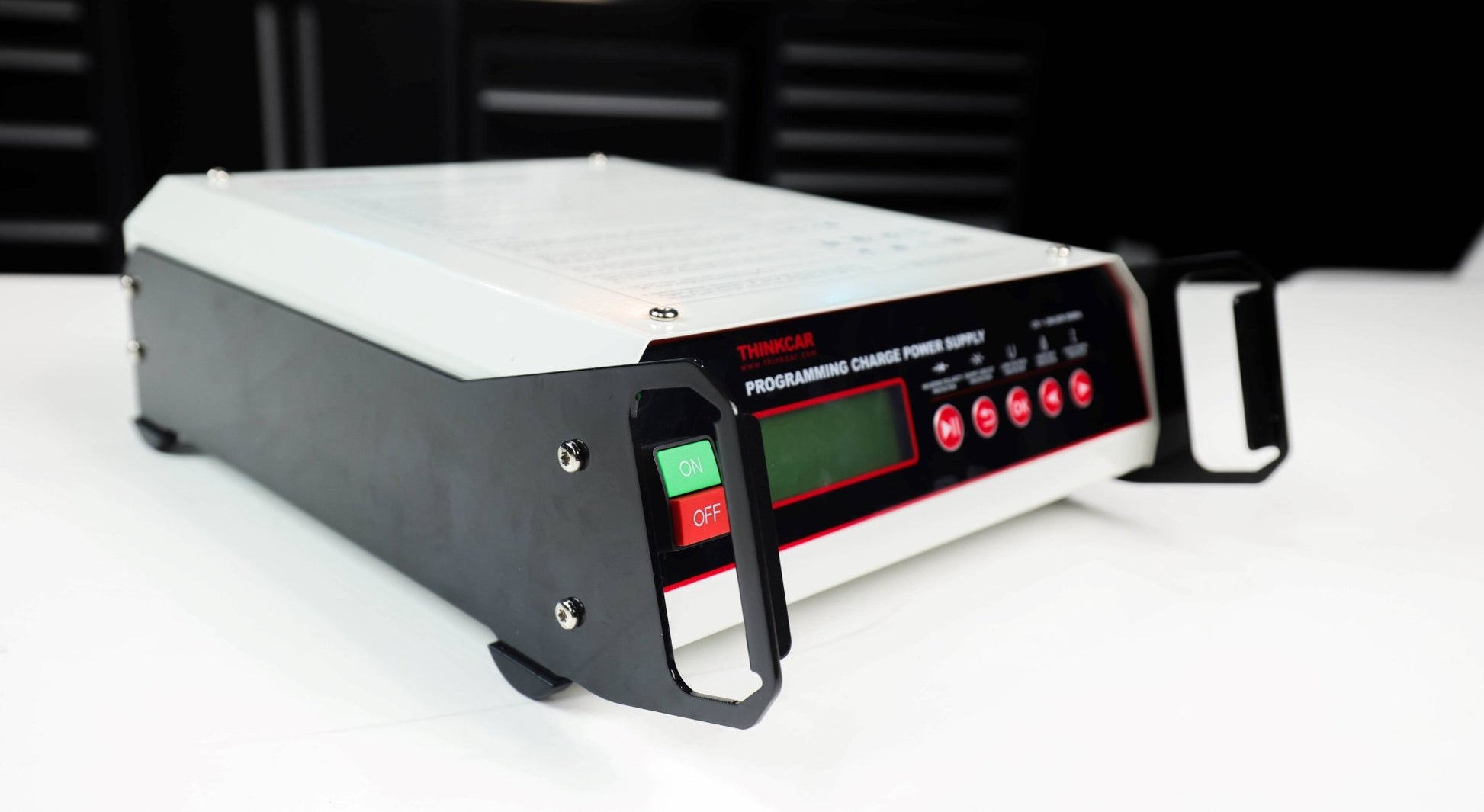

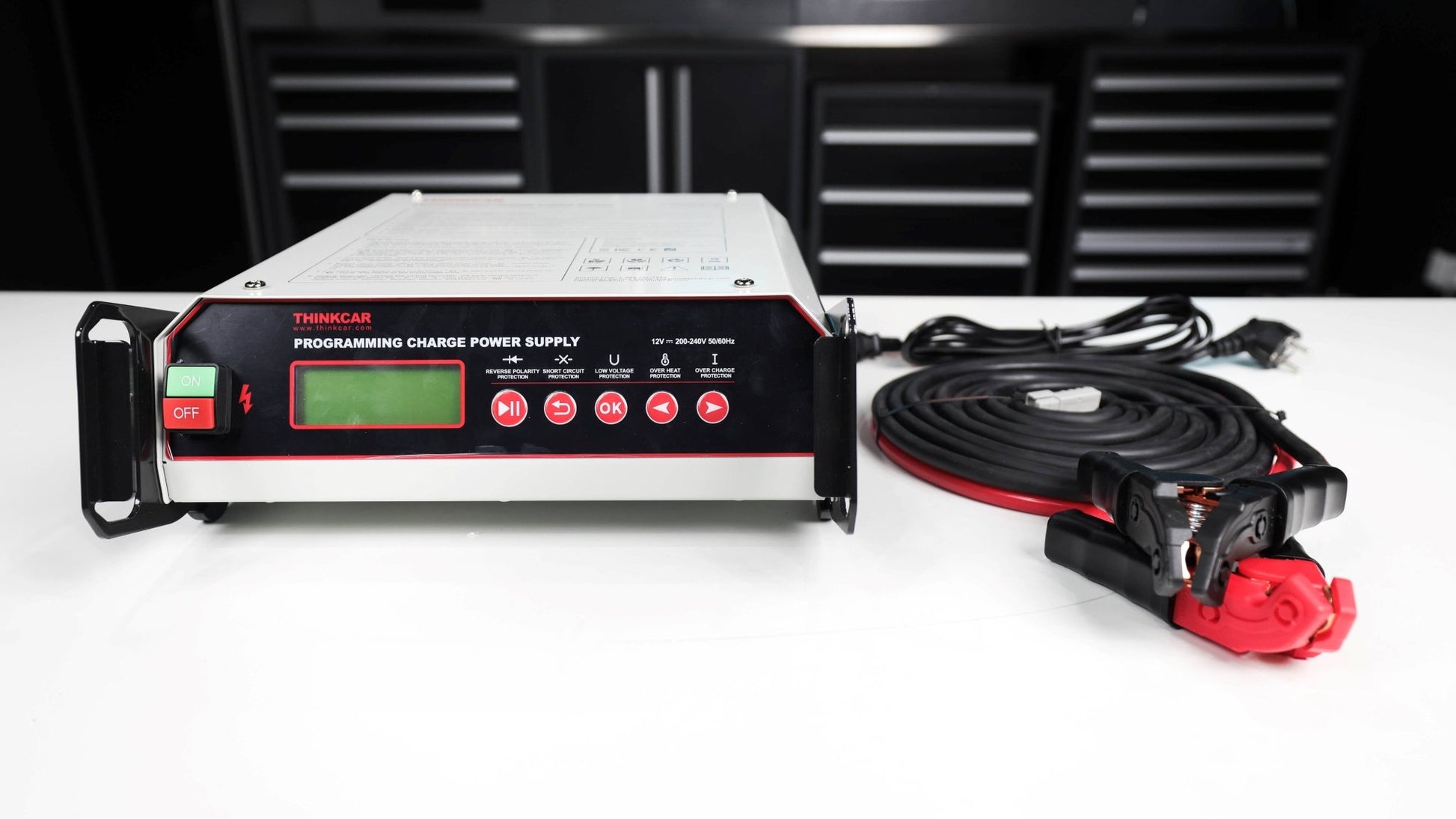

THINKPPS 150 - Battery Charger

THINKCAR PPS 150 – The ultimate charger for workshops

The THINKCAR PPS 150 is the perfect solution for workshops that rely on high charging power. With an impressive charging capacity of up to 150A, it provides a stable and reliable power supply required for demanding diagnostics , programming , and coding . Especially in modern vehicles that utilize extensive electronic systems and control units, the PPS 150 protects against dangerous undervoltages that can occur during extended procedures.

The PPS 150 provides a constant voltage that is maintained over time to ensure that no interruptions affect the diagnostic process. With a programmable voltage setting from 10.8V to 15V, the PPS 150 is suitable for vehicles with standard batteries as well as AGM , GEL , or EFB batteries . It automatically adapts to the respective battery, ensuring efficient and safe use .

Product features :

• Stable programming performance : Provides a consistent power supply for programming and decoding vehicle control units.
• Battery Activation and Repair : Activates and repairs damaged or discharged batteries, ensuring a long service life for vehicle batteries.
• Exhibition mode : Supplies power to the vehicle without discharging the vehicle battery during battery replacement.
• Fast charging : Charging speed for normal , AGM , GEL and EFB batteries with automatic adjustment of charging voltage and current.
• Jump start : Provides a 400A starting current to quickly start vehicles with a discharged battery.

The PPS 150 is equipped with an IP21S protection rating , which protects it from dust and moisture, ensuring longevity in the workshop. The 400A inrush current provides instant power, which is especially needed in critical situations. Weighing just 11 kg, the device can be easily positioned in any work area.

Technical specifications :

• Rated voltage : 110V±15%, 220V±15%
• Programming voltage : 10.8V to 15V
• Input power : 3.8KVA
• Charging current : 20A at 12V
• Size : 415 × 300 × 230 mm
• Inrush current/voltage : 400A at 12V
• Weight : 11 kg

The PPS 150 is therefore an indispensable tool for any workshop that regularly performs vehicle diagnostics, programming, and coding. It guarantees a reliable power supply and protects all electronic components from damage caused by voltage drops.
