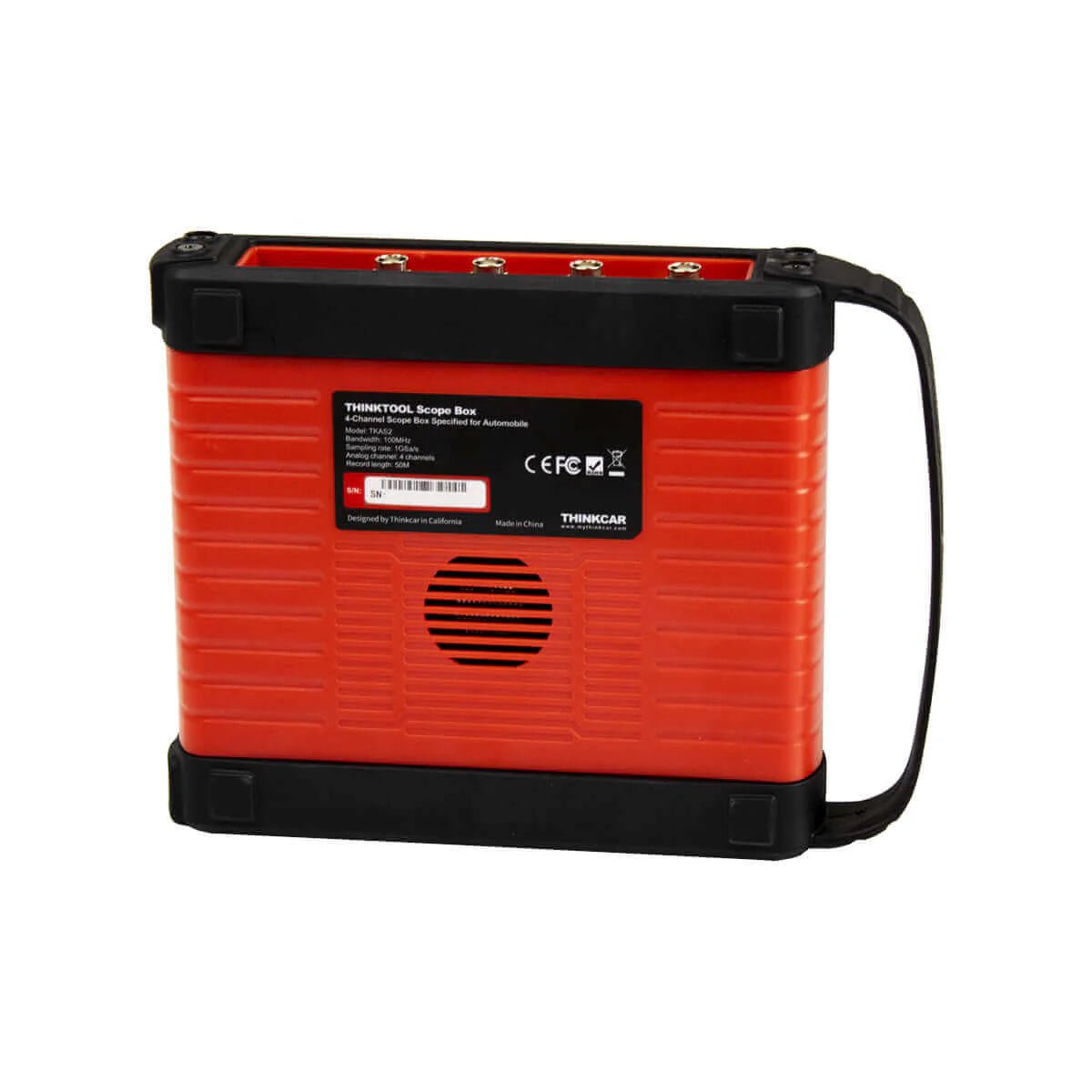

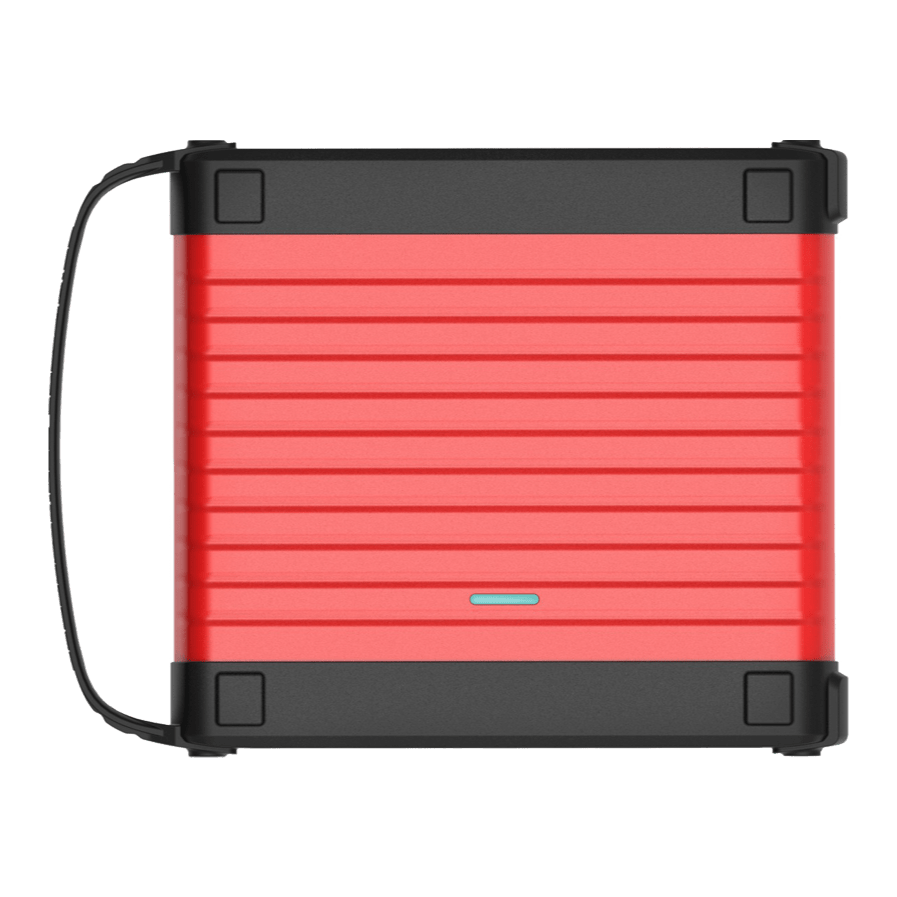

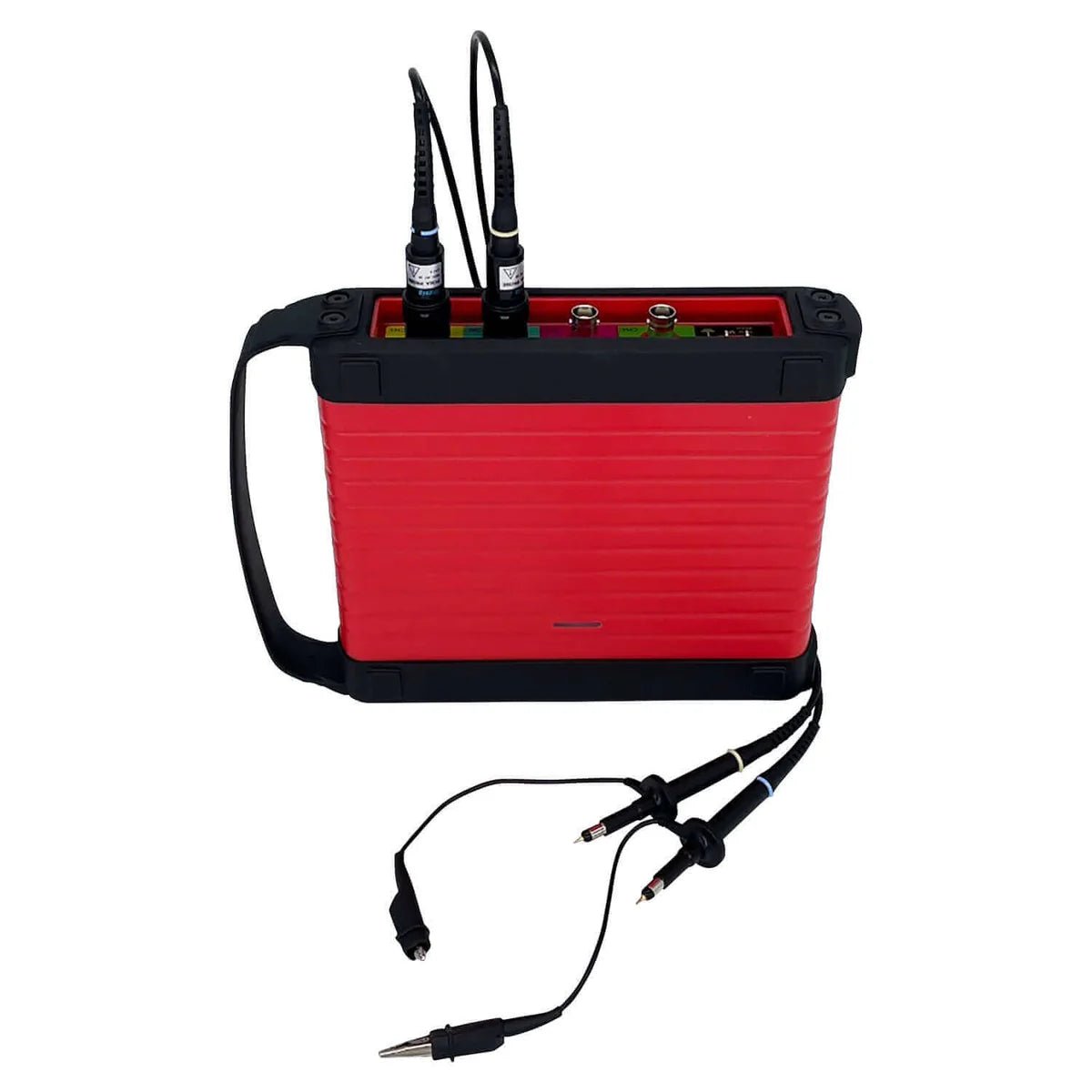

The THINKTOOL Scope Box is a professional 4-channel oscilloscope specifically designed for vehicle signal analysis. It enables precise measurement and evaluation of sensor and actuator signals, as well as the acquisition of ignition and CAN bus signals – all with high accuracy and ease of use.

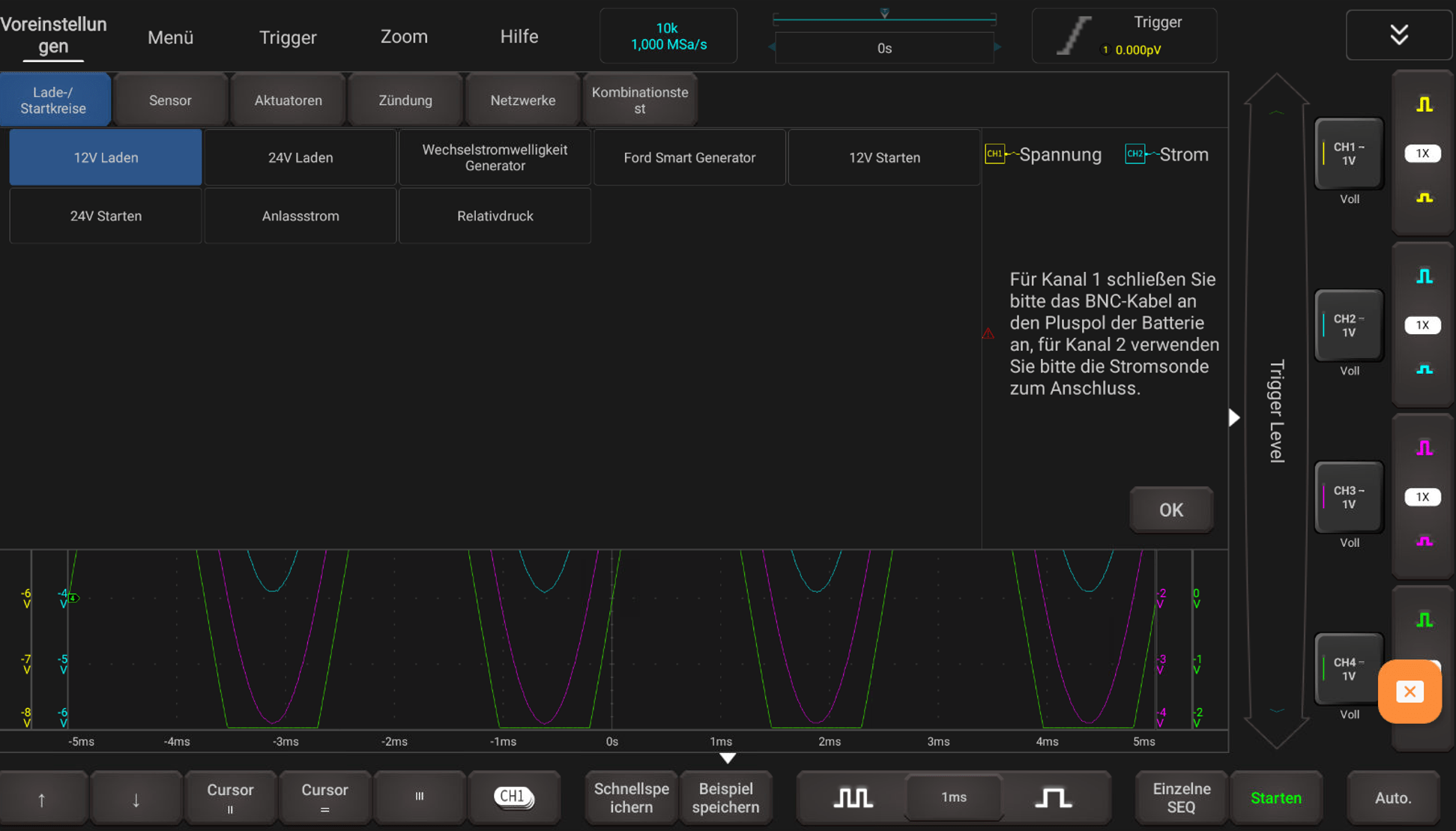

Thanks to pre-stored settings for numerous vehicle components, the Scope Box is ready for immediate use. The X and Y axes are automatically adjusted to the respective sensors and actuators – saving valuable time and significantly simplifying diagnostics.

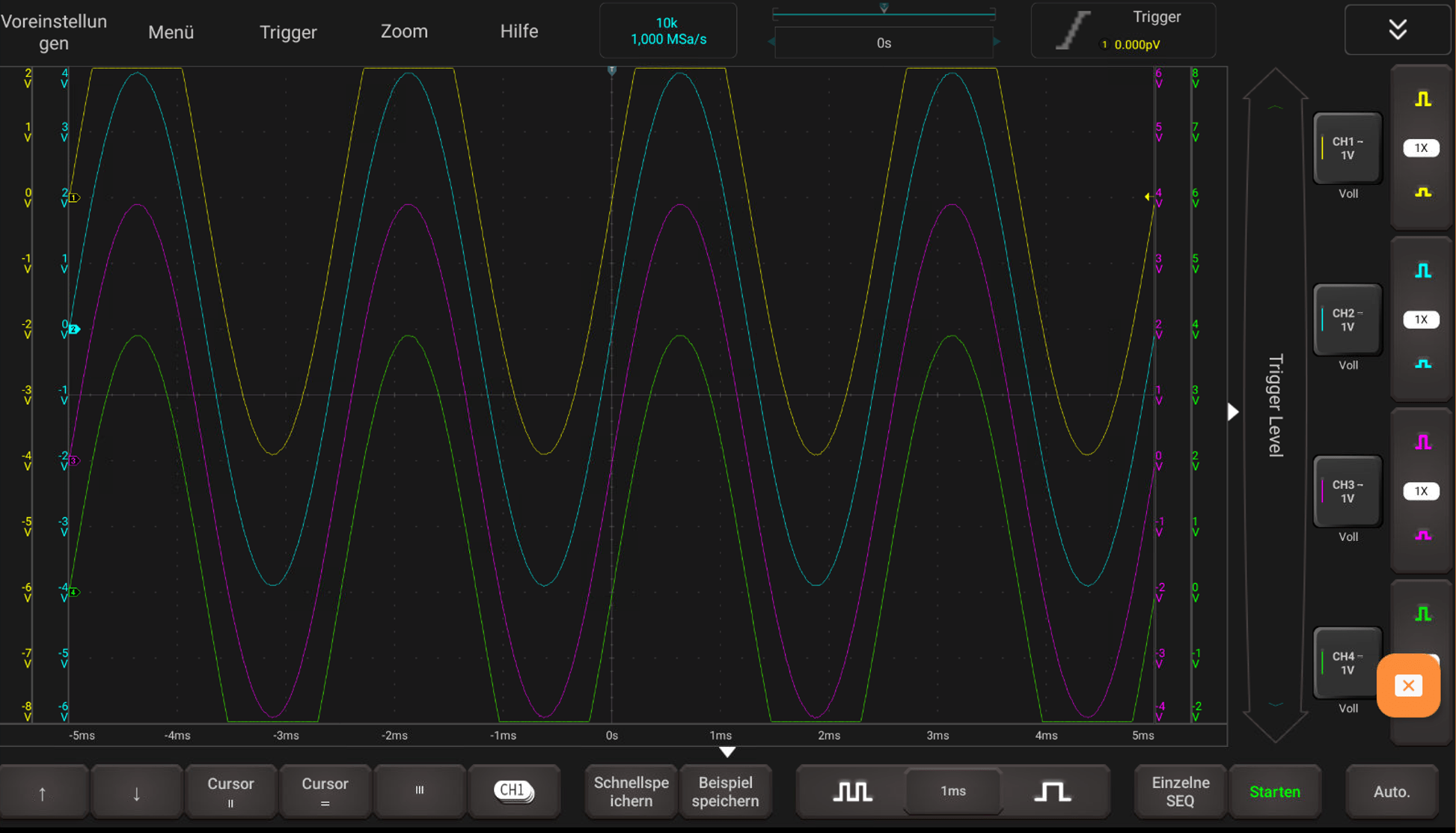

With a bandwidth of 100 MHz , a sampling rate of up to 1GSa/s and a recording length of 50 million points, the Scope Box delivers high-resolution signals in real time and enables detailed analysis of vehicle functions.
Highlights:
100 MHz bandwidth for precise signal measurements
4-channel input for simultaneous acquisition of multiple signals
1GSa/s sampling rate for high-resolution signal display
50Mpts recording length for detailed analysis
Pre-stored settings for quick and easy handling
Easy operation with intuitive user interface
The THINKTOOL Scope Box is an indispensable tool for precise and efficient diagnostics of vehicle systems – ideal for troubleshooting and repair in modern vehicle technology.
